Tutorial: The miR-eCLIP module

What is miR-eCLIP?

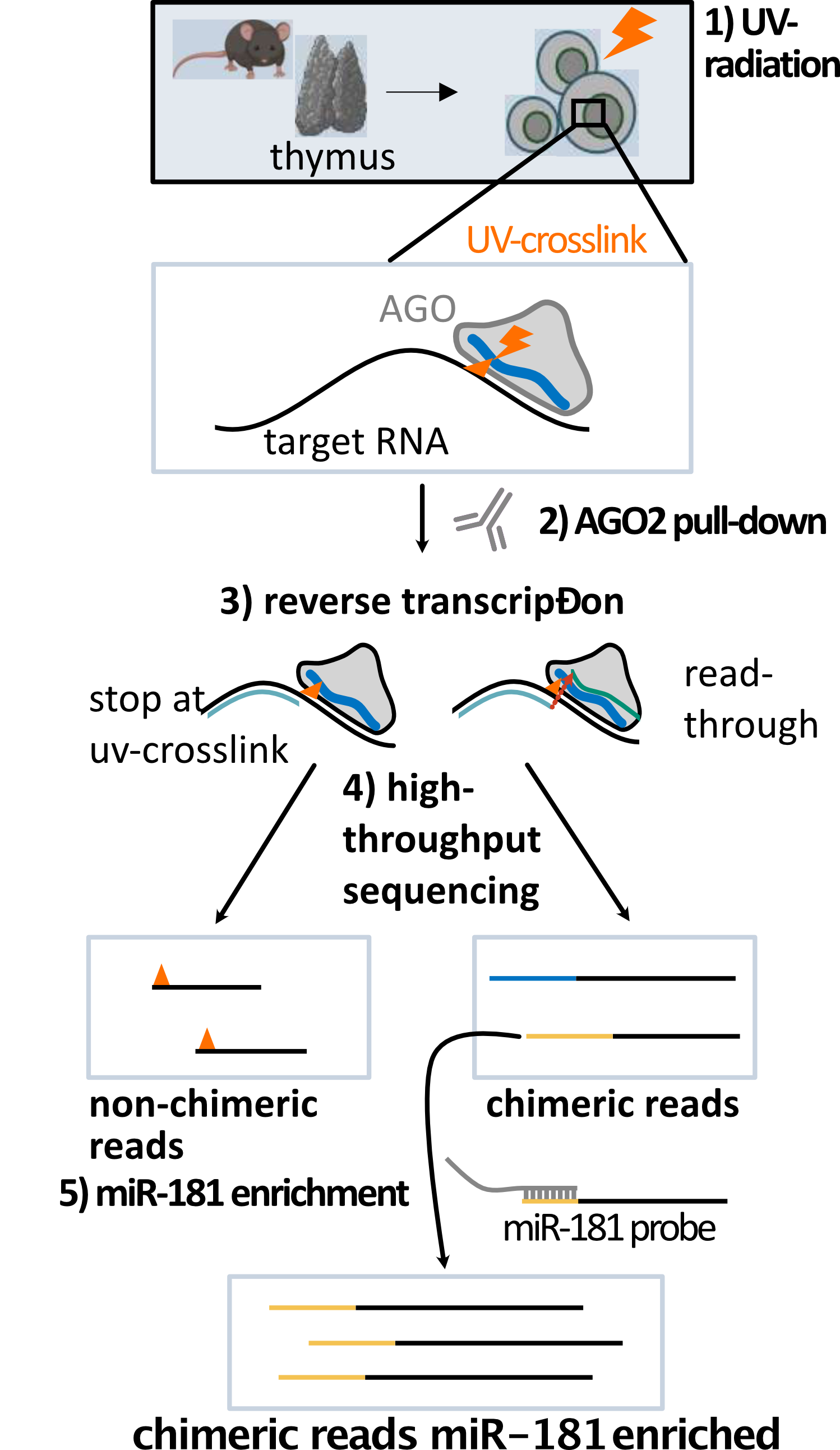

miR-eCLIP is a type of CLIP experiment that allows the mapping of microRNA binding sites on their target RNAs. During the experiment miRNA and target RNA the reverse transcription step produces to a certain extent chimeric reads via read through. The chimeric reads consist of the miRNA sequence at the 5’ end and the sequence of the target RNA next to the UV crosslink. A detailed description of the miR-eCLIP experiment can be found here.

_images/mir-eCLIP.png

How to analyse miR-eCLIP data with racoon_clip

racoon_clip includes an option to analyse miR-eCLIP data (see below for a detailed description of the steps performed). For this, the experiment type “miReCLIP” should be specified and a fasta file of all microRNAs must be provided (mir_genome_fasta).

In addition, one can allow different start positions for the miRNA in the chimeric reads, as we have observed that sometimes there are a few extra nucleotides between the end of the adapter and the miR start (mir_starts_allowed).

All other parameters are the same as the normal racoon_clip parameters. Here is an example config file:

experiment_type: "miReCLIP"

# Where to put the results
wdir: "output/path" # no backslash at the end of the path

# Input
infiles: "path/to/sample1.fastq path/to/sample2.fastq" # one un-demultiplexed file or multiple demultiplexed files

# Samples
samples: "sample1 sample2"

# Annotation
gtf: "path/to/annotation.gtf" # has to be unzipped at the moment
genome_fasta: "path/to/genome_assembly.fa" # has to be unzipped or bgzip
read_length: N

# Adapters
adapter_cycles: 2

# Chimeric miR
mir_genome_fasta: "path/to/miR-genome.fasta" # for example from miRbase
mir_starts_allowed: "0 1 2 3 4"

What are the output files?

You get the following output files:

  • Report_miR.html: An html report, that with overall statistics on the obtained miRs.

  • mir_analysis/aligned_mir: Contains the alignemnt of the miR part of the chimeric reads to the miR sequences as BAM files.

  • mir_analysis/aligned_chimeric_bam: Contains the target RNA part of the chimeric reads aligned to the genome as BAM files.

  • mir_analysis/crosslinks: Contains the crosslinks of the target RNAs in BW files and BED files. In the BED files the read anmes contain the name of the corresponding miR, that belongs to the read.

  • all other output files from the standard racoon_clip analysis

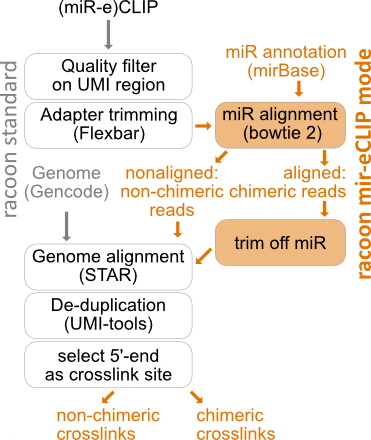

How does racoon_clip process miR-eCLIP data?

_images/mir-eCLIP_racoon_schema.png

Quality filtering and Adapter trimming

First quality filtering and adapter trimming is performed on the raw data. A description of these steps can be found here.

miR alignment

Filtered and trimmed reads are shortend to the first (5’) 24nt with fastx_trimmer -l 24 (from FASTX-Toolkit). For chimeric reads, these 24nt include the 21nt long miRNA. This is done to increase the alignability of the reads, as the long reads have sometimes caused problems when aligning to the annotation of the mature miRNA, which contains only short sequences.

The short reads are then aligned to the miR annotation using bowtie2 with the following settings: –local -D 20 -R 3 -L 10 -i S,1,0.50 -k 20 –trim5 2. Before building an index of the miR genome using bowtie2-build.

Obtaining separate fastq files of chimeric and non-chimeric reads

The reads in the obtained .sam file are then split into chimeric reads and non-chimeric reads by the sam-FLAG with samtools view -f 0 for chimeric reads and samtools view -f 4 for non-chimeric (unaligned) reads.

The read IDs of the unaligned reads are used to extract the non-chimeric reads from the quality filtered and trimmed fastq files with seqkit grep -n. The fastq files of the non-chimeric reads are then sorted with seqkit sort -n and afterwards aligned to the genome annotation as described in the main report.

The chimeric reads are further split by the position of their mapping start (4th column in the sam file). It is important to consider the mapping start, as not all miRs start at the first nucleotide of the read, but the crosslink position should be exactly 21nt after the first nucleotide of the miR. Awk on the sam files is used to make a list of read IDs for each mapping start, then the reads are extracted from the quality filtered and trimmed fastq files according to the mapping start with seqkit grep -n. In addition, the name of the miR (column 3 of the sam file) is extracted as a separate list with awk and added to the beginning of the read_id in the fastq files with seqkit replace -p ‘(.+)’ -r “{{kv}}”.

For each mapping start position, the long reads in the fastq files are trimmed with fastx-trimmer so that the first nt (5’) corresponds to the position where reverse transcription stopped, which is 1nt upstream of the UV crosslink.

After trimming, the fastq files of the chimeric reads are reassembled using cat. By default, reads with a mir start position of 1, 2, 3 or 4 are included and mapping starts at later positions are discarded. This can be changed (see configurations above).

Alignment of chimeric reads to genome annotation

The genome annotation is indexed using STAR –runMode genomeGenerate. The merged file of chimeric reads is then aligned to the genome annotation using STAR –runMode alignReads. For STAR settings, see Configurations. The resulting bam files are indexed using samtools index.

Deduplication

Chimeric reads are deduplicated in the same way as non-chimeric reads with umi_tools dedup –extract-umi-method read_id –method unique.
